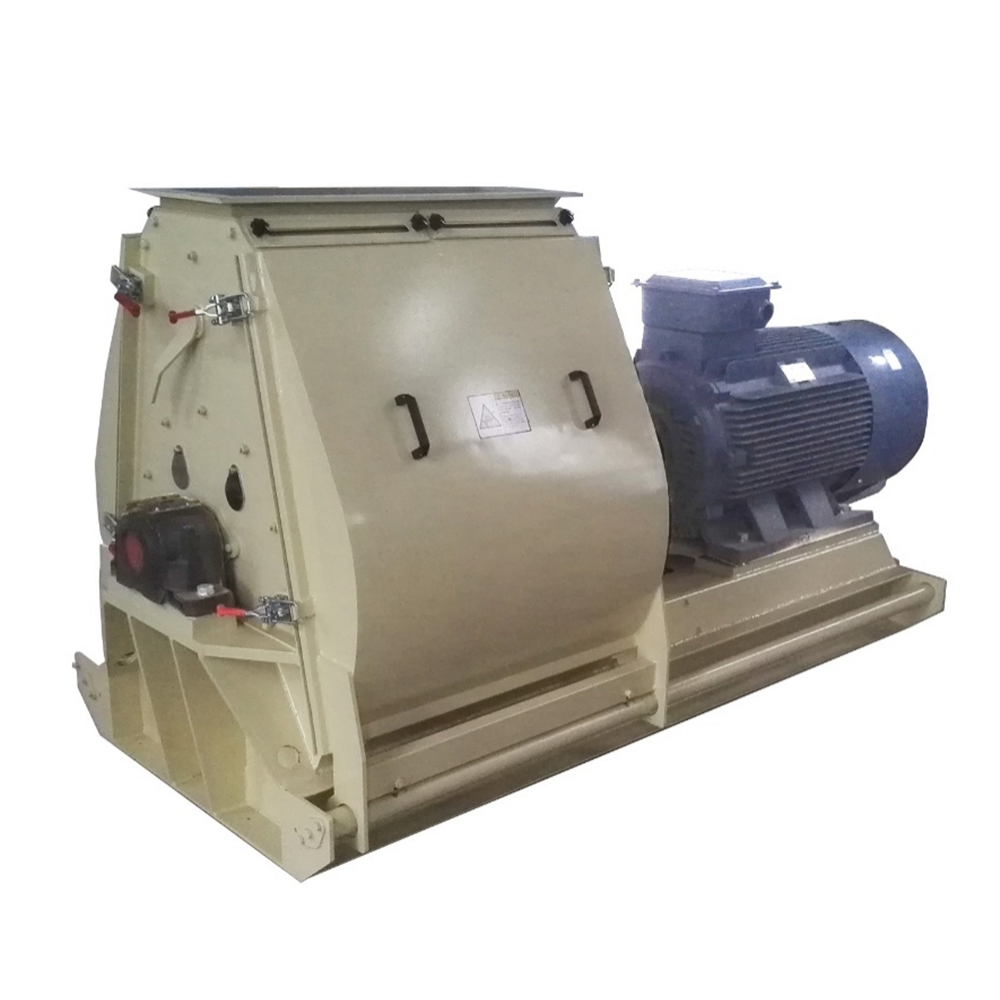

HM Type Hammer Mill
HM Type Hammer Mill
A COMPLETE SOLUTION
The correct combination of hammer mill type, screens, hammers, speed, feeding system, and air flow through the hammer mill ensures the required grinding results and creates optimum conditions for subsequent processes, such as mixing, pelleting, and extrusion. Thus. the grinding process is not merely a question of the hammer mill alone, but also includes everything from feed system to discharge hopper, aspiration filter, and electronic control system.
TECHNICAL DATA
HM56 Type Hammer Mill
HM56 | Rotor Diameter | Motor Power(kW) | Rotor rpm/50Hz | Screen Width | Hammer Numbers |
Type HM56-30 | Ø560mm | 18.5-22 | 3000 | 300mm | 20 |
Type HM56-40 | Ø560mm | 30-37 | 3000 | 400mm | 24 |
HM65 Type Hammer Mill
HM65 | Rotor Diameter | Motor Power(kW) | Rotor rpm/50Hz | Screen Width | Hammer Numbers |
Type HM65-45 | Ø685mm | 37-45 | 3000 | 450mm | 64 |
Type HM65-60 | Ø685mm | 55-75 | 3000 | 600mm | 88 |
Type HM65-90 | Ø685mm | 90-110 | 3000 | 900mm | 132 |
Type HM65-120 | Ø685mm | 132-200 | 3000 | 1200mm | 176 |
Type HM65-150 | Ø685mm | 200-315 | 3000 | 1500mm | 220 |
HM120 Type Hammer Mill
HM120 | Rotor Diameter | Motor Power(kW) | Rotor rpm/50Hz | Screen Width | Hammer Numbers |
Type HM120-40 | Ø1200mm | 75-90 | 1500 | 400mm | 72 |
Type HM120-50 | Ø1200mm | 90-110 | 1500 | 500mm | 90 |
Type HM120-60 | Ø1200mm | 132-160 | 1500 | 600mm | 108 |
Type HM120-80 | Ø1200mm | 160-200 | 1500 | 800mm | 140 |
Type HM120-100 | Ø1200mm | 200-315 | 1500 | 1000mm | 168 |
